| available options |
Chip contact initialising. FLIP-OVER module (front/rear
print). Floor stand unit for Pro-Series. |
| bar codes |
Code 39, EAN8, EAN13, Code 128, Codabar, 2/5 Interleaved
and others. |
| card materials |
ABS, PVC and polyester. |
| communication interface |
Serial RS232 port and parallel port. |
| dimensions and weight |
860 x 480 x 350 mm x 50 kg. (34"x19"x13,75"x111
lbs) |
| electrical requirements |
117 V / 60 Hz - 220 V / 50 Hz. |
| fonts/printing |
Internal or Windows true type fonts. |
| input hopper capacity |
200 cards. |
| magnetic stripe encoding |
3 Tracks 3 ISO 7811, LoCo-MeCo/HiCo. |
| output hopper capacity |
200 cards. Reject hopper. |
| performance |
Up to 1.100 CPH (monochrome front), up to 150 CPH (colour
photograph 25 x 25 mm / 0,984"x0,984"). 3 cards simultaneously
processed. |
| printing area |
Full card size. |
| printing options |
Monochrome and Monochrome/colour. |
| printing orientation |
0°, 90°, 180°, 270°. |
| resolution |
300 DPI. |
| ribbon saving feature |
Standard. |
| software |
Windows based application software. Firmware: self
diagnostic, selectable automatic repeat card, card reading with full
post processing of the same card, resettable and non resettable
counters. System status and diagnostic messages reported on PC.
Optional LinkWare application for in-line operation with other
Pro-Series modules. |
| |
|
| |
|
 |
|
 |
|
 |
|

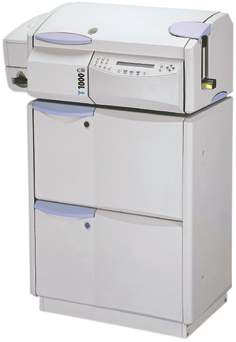

| The Thermal 1000 is equipped with the
latest generation printing module form CIM ensuring high speed
performance and professional printing of images, logos and text.
|
| It can work in-line with the Inserter
1500 Pro Series. |
| • Equipped with the MSP system,
allowing 3 cards to be processed simultaneously. Speed up to 1.100
cards per hour and up to 150 cards per hour in full colour. |
| • LCM encoding module for higher
encoding quality, improved reading. |
| • New professional card cleaning
station T Clean: continuous operation and long print head life.
| |
